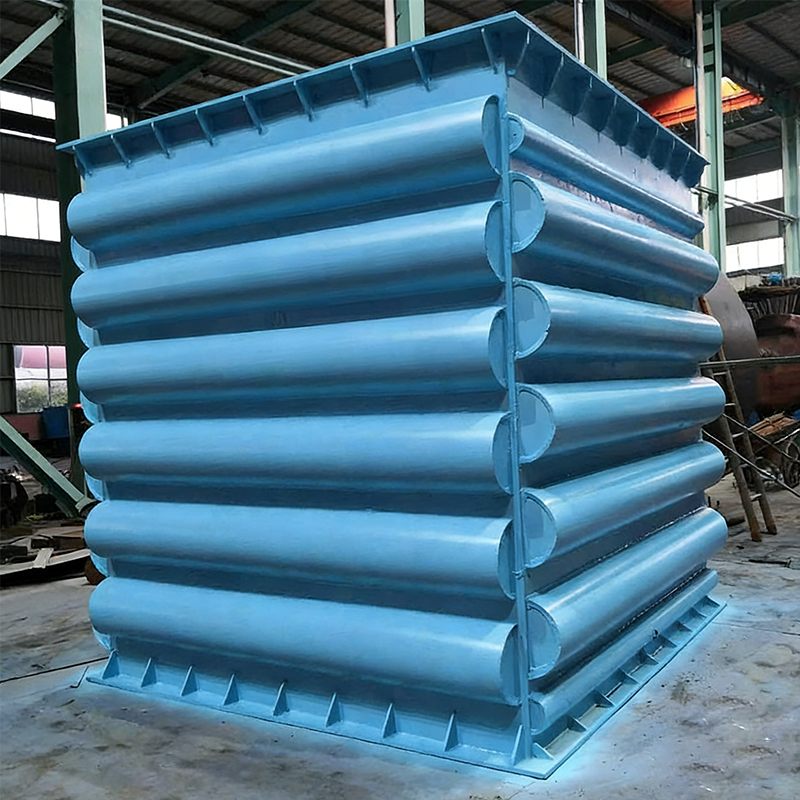

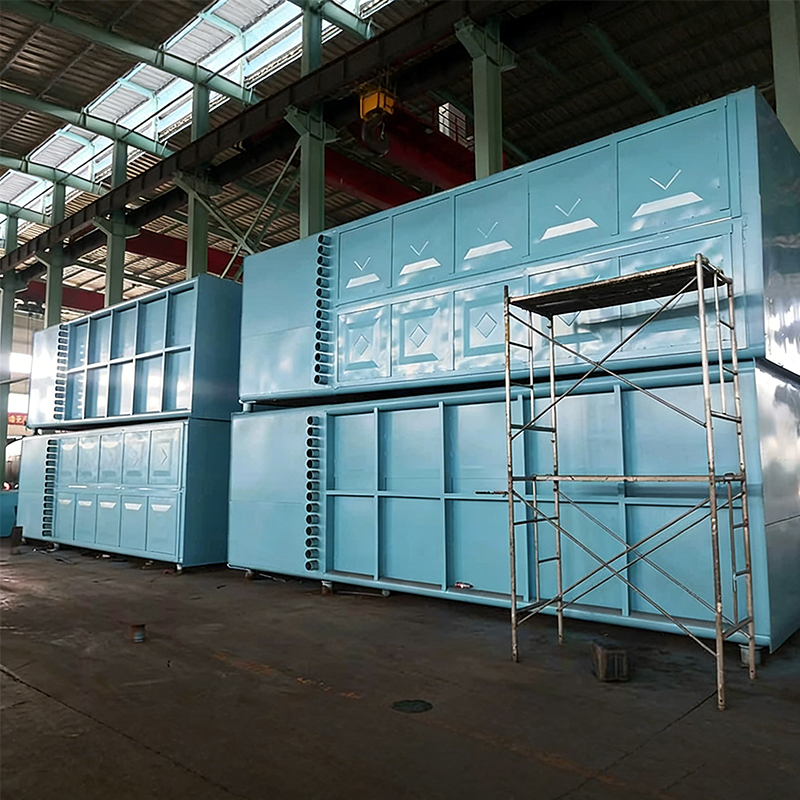

Coke Oven Flue Gas Waste Heat Boiler

Coke Oven Flue Gas Waste Heat Boiler

The Coke Oven Flue Gas Waste Heat Boiler is a high-efficiency, energy-saving device specifically developed for the coking industry. It aims to recover and utilize the large amounts of waste heat from medium- and low-temperature flue gas generated during coking production, converting this waste heat energy into usable steam or electricity. This equipment not only significantly reduces energy consumption costs for enterprises but also effectively reduces environmental pollution, making it a key piece of equipment for coking companies to achieve green and low-carbon development. During coking production, processes such as coke oven heating, raw gas cooling, and dry quenching generate large amounts of medium- and low-temperature flue gas at 260℃-300℃. Direct emission of this flue gas not only results in significant energy waste but also exacerbates environmental thermal pollution. Our coke oven flue gas waste heat boiler uses advanced heat exchange technology to reduce the flue gas temperature to 140℃-160℃ before releasing it into the atmosphere, while simultaneously using the recovered heat to generate steam, which can be directly used for production processes, heating, or power generation.

Contact Us
  • Features
  • Message
Features

The Coke Oven Flue Gas Waste Heat Boiler is a high-efficiency, energy-saving device specifically developed for the coking industry. It aims to recover and utilize the large amounts of waste heat from medium- and low-temperature flue gas generated during coking production, converting this waste heat energy into usable steam or electricity. This equipment not only significantly reduces energy consumption costs for enterprises but also effectively reduces environmental pollution, making it a key piece of equipment for coking companies to achieve green and low-carbon development. During coking production, processes such as coke oven heating, raw gas cooling, and dry quenching generate large amounts of medium- and low-temperature flue gas at 260℃-300℃. Direct emission of this flue gas not only results in significant energy waste but also exacerbates environmental thermal pollution. Our coke oven flue gas waste heat boiler uses advanced heat exchange technology to reduce the flue gas temperature to 140℃-160℃ before releasing it into the atmosphere, while simultaneously using the recovered heat to generate steam, which can be directly used for production processes, heating, or power generation.



Product Features:
1. High Heat Recovery Efficiency: The boiler's heat recovery efficiency can reach over 85%, reducing the inlet flue gas temperature from 260℃-300℃ to approximately 140℃-160℃, utilizing waste heat to generate steam.
2. Enhanced Heat Transfer Design: The heating surface consists of an economizer section and an evaporator section. The economizer section uses a counter-current arrangement to improve heat transfer temperature and pressure, while the evaporator section uses a co-current arrangement. H-shaped finned tubes are used, with a welding fusion rate of over 98% between the fins and the steel tubes, ensuring a good heat transfer coefficient.
3. Wear-Resistant and Ash-Resistant Design: The H-shaped finned tube heat exchanger uses a parallel arrangement, dividing the flue gas space into several small areas to achieve a uniform flow effect. Compared to staggered bare tube or spiral finned heat exchangers, this design increases the wear life of the tube bundle by 3-4 times. A 6-13mm gap is left between the H-shaped fins to guide airflow and sweep away ash accumulation, providing a self-cleaning function at suitable wind speeds, thereby reducing ash accumulation.
4. Compact Structure and Low Resistance: The forced circulation design allows for a compact and flexible arrangement of the heating surfaces. The straight channels formed by the H-shaped fins help reduce flue gas resistance, lowering the operating and investment costs of the induced draft fan. Some models utilize membrane wall flue partitions, which increase the heating surface area and enhance the boiler's sealing and compactness.
5. Dew Point Corrosion Protection: By rationally controlling the metal wall temperature of the heating surfaces to avoid the flue gas dew point temperature, a prerequisite for preventing leaks in the heating surfaces. The heat pipe waste heat boiler's arrangement of the heat exchange surfaces in the low-temperature flue gas zone also considers preventing dew point corrosion.
6. Flexible Configuration and Maintenance: The boiler can be customized according to the coking plant's capacity, waste heat parameters, and actual site conditions. The layout (e.g., traditional horizontal or new vertical) can be determined based on requirements. The boiler employs a modular design, allowing for individual replacement of heat pipe elements or needle tube assemblies, facilitating maintenance.
Working Principle: The coke oven flue gas waste heat boiler utilizes a forced circulation design. The steam-water working fluid is driven by feedwater pumps and hot water circulation pumps within the tubes, enabling an unrestricted and compact arrangement of the heating surfaces.
The boiler system mainly consists of two parts: the economizer section and the evaporator section:
1. Economizer Section: Adopts a counter-current arrangement (the working fluid flows in the opposite direction to the exhaust gas). Feedwater absorbs low-grade energy from the exhaust gas, increasing feedwater temperature and steam production.
2. Evaporator Section: Adopts a co-current arrangement. Water passes through the heating surfaces to generate steam, which enters the inlet header and is then introduced into the boiler drum via riser pipes.
The normal operating procedure is as follows: An opening is made before the flap valve in the underground main flue of the coke oven to draw out the hot flue gas (260℃-300℃). After heat exchange and cooling to 140℃-160℃ through the waste heat boiler system, it is discharged into the original chimney by the induced draft fan.





Related Products
About
Jiangsu Shineng Chemical Equipment Co., Ltd.
As China coke oven waste heat boiler manufacturer and coke oven flue gas whb company, Jiangsu Shineng Chemical Equipment Co., Ltd, founded in 2005, the company specializes in the R&D and manufacturing of flue gas waste heat recovery systems and chemical equipment, possessing comprehensive in-house capabilities spanning from heat pipe development and nickel-based brazing to pressure vessel fabrication. Our products are widely used in coal chemical, metallurgy, power generation, and synthetic ammonia industries, and have been exported to overseas markets.
Certificate Of Honor
  • Occupational Health and Safety Management System Certification
  • Environmental Management System Certification
  • Quality Management System Certification
  • Certification
  • Certificate Of Authorization
  • Production License of Special Equipment People's Republic of China
  • Production License of Special Equipment People's Republic of China
  • Certification
  • Certification
News
  • How to Ensure Safety When Using Industrial Storage Tanks?

    How to Ensure Safety When Using Industrial Storage Tanks? Ensuring safety when using industrial storage tanks — including chemical storage tanks, pressure vessels, and heat recovery boiler systems — requires a systematic approach across three domains: correct design and material specification, rigo...

    Read More
  • How Can Metallurgy Waste Heat Boilers Save Your Plant Energy Costs?

    How Can Metallurgy Waste Heat Boilers Save Your Plant Energy Costs? Metallurgy waste heat boilers can reduce a plant's total energy consumption by 15% to 40%, cutting fuel costs by hundreds of thousands of dollars annually. For facilities operating blast furnaces, electric arc furnaces, sintering l...

    Read More
  • What Should You Look for in Industrial Chemical Process Equipment?

    What Should You Look for in Industrial Chemical Process Equipment? The short answer: when selecting industrial chemical process equipment, prioritize material compatibility, pressure and temperature ratings, energy recovery capability, and the manufacturer's track record in custom fabrication. Whet...

    Read More
  • Covering 20+ Provinces, Shineng Reaches Far

    【Jingjiang, Jiangsu】With nearly two decades of deep industry experience, Jiangsu Shineng Chemical Equipment Co., Ltd. has become an important player in domestic waste heat recovery and chemical equipment. Its products have been approved by the National Chemical Exploration and Design Association as ...

    Read More
  • Nearly 100 Patents, Shineng Innovates

    【Jingjiang, Jiangsu】Innovation is the core driving force of Jiangsu Shineng. The company operates a Heat Pipe Research Institute and maintains long-term cooperation with East China University of Science and Technology, the Heat Pipe Research Center of Nanjing Tech University, Shanghai Chemical Desig...

    Read More
Industry knowledge

1. What Is a Coke Oven Waste Heat Boiler

A Coke Oven Waste Heat Boiler is a specialized waste heat recovery boiler designed to capture thermal energy from high-temperature flue gases generated during coke production. In a typical coke oven battery, combustion flue gases exit at 800°C to 1000°C, representing a significant energy resource that would otherwise be wasted. A Coking WHB recovers this heat to produce superheated steam for power generation or plant heating. According to the China Coking Industry Energy Efficiency Report 2023, a typical 1.2 million ton/year coke plant can recover 55-70 MW of thermal energy, generating 25-35 t/h of steam. This translates to annual power generation of 60,000-80,000 MWh and a reduction in CO₂ emissions of 45,000-60,000 tons per year. The Coke Oven Flue Gas WHB is thus a critical component for modern, energy-efficient coking operations.

Figure 1: Waste Heat Recovery Potential by Coke Oven Capacity
500k t/y 22 MW 1.0M t/y 45 MW 1.5M t/y 68 MW 2.0M t/y 92 MW

The horizontal bar chart shows the waste heat recovery potential from different coke oven capacities. A 500,000 ton/year coke oven can recover about 22 MW of thermal energy, while a large 2.0 million ton/year plant can capture up to 92 MW. For every 100,000 tons of annual coke production, approximately 4.5-5.0 MW of recoverable heat is available from the flue gas stream. This represents about 35-45% of the total heat input to the coke oven battery. By installing a Coke Oven WHB, a coking plant can generate 15,000-70,000 MWh of electricity annually, reducing its purchased power consumption by 25-40%. Furthermore, the recovered steam can replace coal-fired auxiliary boilers, cutting total plant CO₂ emissions by 10-15%. The Coking Industry WHB thus delivers both economic and environmental benefits.

As a specialized China Coke Oven Waste Heat Boiler and Coke Oven Flue Gas WHB Manufacturer, Jiangsu Shineng Chemical Equipment Co., Ltd. designs complete waste heat recovery systems for coke oven batteries. Their Industrial WHB solutions incorporate high-temperature alloy heat exchangers, automated soot-blowing systems, and corrosion-resistant materials for high-sulfur flue gas environments.

2. How Does a Coke Oven Waste Heat Boiler Work?

A Coke Oven Heat Recovery system typically operates as a flue gas heat exchanger installed in the main flue duct after the coke oven battery. Hot flue gas at 800-1000°C flows across specially designed finned tube bundles, transferring heat to water/steam circulating inside. The boiler includes multiple sections: a superheater (to raise steam temperature), an evaporator (for steam generation), and an economizer (to preheat feedwater). Natural or forced circulation maintains stable hydrodynamic conditions. The line chart below illustrates the typical temperature profile of flue gas as it passes through the WHB.

Figure 2: Flue Gas Temperature Reduction in Coke Oven WHB
Heat exchange section → Superheater Evaporator Economizer 920°C 680°C 380°C 165°C Flue gas temperature (°C)

The line chart demonstrates the temperature reduction of coke oven flue gas as it flows through the WHB. Inlet gas at 920°C passes through the superheater (920→680°C), then the evaporator (680→380°C), and finally the economizer (380→165°C). The total temperature drop of 755°C corresponds to a heat recovery efficiency of 75-82% for a modern coke oven WHB. For a typical 1.2 million ton/year coke plant with a flue gas flow of 180,000 Nm³/h, this recovery yields approximately 32 t/h of superheated steam at 4.0 MPa and 430°C. The steam can drive a 7.5 MW turbine generator, producing about 60,000 MWh annually. Additionally, the reduced exhaust temperature (below 170°C) allows for safer downstream processing and reduces thermal pollution. The system also captures condensable hydrocarbons, improving overall plant environmental performance.

Jiangsu Shineng's Coke Plant Waste Heat Recovery systems include intelligent control technology that adjusts water circulation and steam parameters in real time based on coke oven cycling. Their Coke Oven Flue Gate Valve integration allows for seamless diversion of flue gas during maintenance or oven heating cycles, ensuring continuous plant operation.

3. Performance Advantages and Technology Comparison

A Coke Oven Waste Heat Boiler provides multiple benefits: reduced fuel consumption, lower CO₂ emissions, and improved profitability. The table below compares key performance indicators for a coke plant before and after installing a WHB on a 1.2 million ton/year battery.

Table: Performance improvement with Coke Oven WHB (1.2M t/y coke plant case)
Parameter Before WHB After WHB Install Change
Coke oven specific energy (GJ/t coke) 2.85 2.18 -23.5%
Steam generation (t/h) 0 32 +32 t/h
Power generation (MW) 0 7.5 +7.5 MW
CO₂ reduction (tons/year) baseline 52,000 annual saving
Figure 3: Power Generation Capacity by Coke Oven Battery Size
Potential power generation (MW) 3.2 0.5M t/y 5.1 0.8M t/y 7.8 1.2M t/y 11.5 1.8M t/y

The column chart shows the potential power generation capacity from coke oven flue gas waste heat recovery based on annual coke production. A 0.5 million ton/year plant can generate about 3.2 MW, while a large 1.8 million ton/year facility can produce up to 11.5 MW. For every 100,000 tons of annual coke production, approximately 0.65-0.70 MW of power can be generated using a modern Coke Oven Flue Gas WHB system. This translates to annual electricity production of 25,000 to 90,000 MWh depending on plant size, covering 30-45% of the coking plant's own power consumption. The recovered power reduces purchased electricity costs and lowers the overall carbon intensity of coke production by 18-25%. Furthermore, Coking Industry WHB Supplier systems often qualify for carbon credits under international emission reduction frameworks, providing additional financial returns. The steam can also be used for coal preheating or chemical byproduct processing, achieving cascaded energy utilization.

Figure 4: Performance Radar — Standard vs. Advanced Coke Oven WHB
Heat recovery efficiency High-temp durability Fouling resistance Cyclic stability Corrosion resistance

The radar chart compares a conventional coke oven waste heat recovery design with the advanced solution from Jiangsu Shineng. Conventional designs score around 60-70 in key areas such as heat recovery efficiency and fouling resistance. Shineng's Coke Oven Waste Heat Boiler achieves scores above 90 across all metrics, with fouling resistance at 95 due to optimized spiral fin spacing and automated pulse soot-blowing systems. The advanced design improves heat recovery efficiency by 18-22% compared to conventional units, directly translating into 20-25% more steam generation for the same flue gas flow. The use of nickel-based brazed fin tubes (developed in-house) provides superior corrosion resistance even when processing coking flue gas containing sulfur compounds and naphthalene. As a Coke Oven Waste Heat Boiler Manufacturer with nearly two decades of experience, Jiangsu Shineng delivers custom Industrial WHB for Coke Oven solutions that maximize return on investment while meeting stringent environmental regulations.

4. Frequently Asked Questions (Q&A)

  1. Q1: What is the typical payback period for a Coke Oven Waste Heat Boiler in a coking plant? Based on multiple projects in China, India and Europe, the payback period for a Coke Oven WHB ranges from 12 to 24 months, depending on local electricity prices and operating hours. For a 1.2 million ton/year plant producing 7-8 MW of power, annual savings can exceed USD 3 million, with capital costs recovered within 18 months.
  2. Q2: How does the WHB handle the challenging flue gas composition from coke ovens (naphthalene, H₂S, tar)? Modern Coke Oven Heat Recovery systems incorporate specially designed finned tubes with wide pitch (15-25 mm) to minimize fouling. Online soot-blowing systems (steam or acoustic) operate every 4-6 hours. Jiangsu Shineng's Coke Oven Flue Gas WHB Manufacturer solutions also include a pre-scrubber section for heavy tar removal, maintaining thermal performance above 95% over a 6-month campaign.
  3. Q3: Can the WHB be integrated with existing coke oven batteries without interrupting production? Yes. As a Coking Industry WHB Supplier, Jiangsu Shineng specializes in modular retrofit designs. The WHB is installed in the existing flue gas duct with bypass dampers (China Coke Oven Flue Gate Valve assemblies), allowing the coke oven to operate normally during installation. Final tie-in requires 5-7 days of scheduled downtime, typically during a battery heating maintenance period.
  4. Q4: What steam parameters are achievable from a coke oven WHB? Typical Coke Plant Waste Heat Recovery System designs produce saturated or superheated steam at 2.5-5.3 MPa and 350-450°C. For larger coke oven batteries (above 1.5M t/y), high-pressure designs up to 9.8 MPa, 540°C are feasible, enabling high-efficiency condensing turbine generation. Jiangsu Shineng's Industrial WHB offering includes both medium-pressure and high-pressure configurations, with selections based on flue gas temperature and plant power requirements.

Company introduction: Jiangsu Shineng Chemical Equipment Co., Ltd. As a China flue gas recovery unit manufacturer and waste heat recovery system company, Jiangsu Shineng Chemical Equipment Co., Ltd, founded in 2005, specializes in the R&D and manufacturing of flue gas waste heat recovery systems and chemical equipment, possessing comprehensive in-house capabilities spanning from heat pipe development and nickel-based brazing to pressure vessel fabrication. Our products are widely used in coal chemical, metallurgy, power generation, and synthetic ammonia industries, and have been exported to overseas markets. As a leading Coke Oven Waste Heat Boiler Manufacturer and Coke Oven Flue Gas WHB Supplier, Shineng provides complete Coke Oven Heat Recovery solutions, from engineering and fabrication to commissioning and after-sales support, helping coking plants achieve significant energy savings and emissions reduction.
